Posts Tagged ‘Kona Unit’

Maxxis Ignitor Tyres

Sunday, March 27th, 2011

After about a year-and-a-half of consideration, I finally picked up a pair or two of Maxxis Ignitors.  I’ve ridden a fair number other tyres (note that while some of these tyres were purchased in the U.S. as ‘tires’, I’m writing this in Australia, so they’re now ‘tyres’), but I haven’t been that happy with any of them.

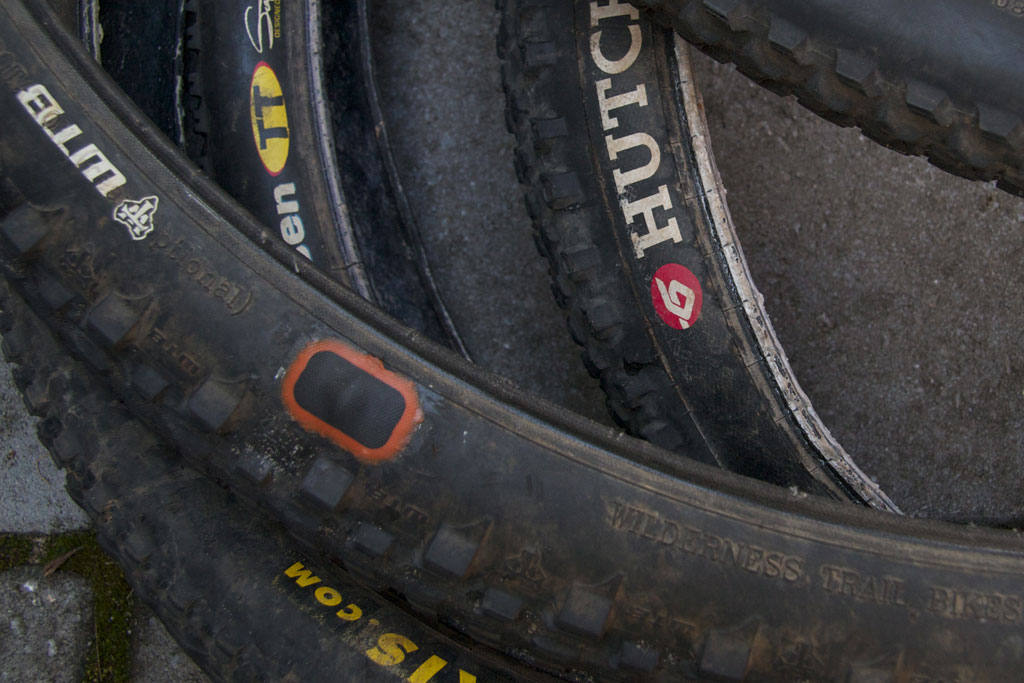

Of the tyres I’ve recently ridden, the Larsen TTs were fast on hard pack but way to unpredictable in loose corners and mud.  The Hutchinson Toros were nice on the front, but too slow on the back.  The WTB Prowler 29 SLs were predictable but slow and heavy, the sidewalls proved a little weak, too. Finally, the Crossmark came the closest, but they still gave up too much in the mud and didn’t seem to offer much over the Larson TTs.

While in the U.S. (or the ‘States, as it were) I rode Eric’s Turner Burner with 26×2.1″ Ignitors in what I’d call moderately-slippery mud as well as dry-ish hardpack.  I was so impressed with the Ignitors that I  finally decided to buy some.  I got a pair of Ignitor 120 tpi ‘Exception Series’ 26×2.1″ tyres for the Eriksen and a pair of Ignitor 29×2.1″ 60 tpi tyres for the Kona.

The 26×2.1″ Ignitor Exception measures in at a predictably-puny 1.785″ mounted without tubes on Mavic 819 rims.  The missing 0.215″ of tyre width certainly explains some of the 260g (a little over a half pound) weight savings over the old Crossmark/Toro combo.  Aside from the sizing discrepancy, the 26″ Ignitors mounted easily and inflated with some Stan’s sealant without too much coercion.

The 29×2.1″ Ignitor measures in at a shockingly-accurate 2.039″ mounted with tubes on Fulcrum Red Metal XL 29er rims.  Even with an honest tyre size, the 29″ Ignitors saved 200g (a little under a half pound) over the old and notoriously-heavy 2.1″ WTB Prowler 29 SL tyres.

In the process of swapping the tyres on the Kona, I also removed a link form the chain (the Kona is a SS with sliding Paragon-like dropouts) and shortened the wheelbase by more or less 1″, assuming the PC1 chain didn’t already stretch too much.

I took the Kona out to Fox Creek (home of the Foxy 1000) and had a unplanned riding buddy for the entire one-and-a-half-hour ride.  He kept cutting the switch-backs so I couldn’t always keep up, but I did pass him on the downhills.

Overall, the changes were transformative. I don’t know if the shorter chain stay/wheelbase or the Ignitors made the difference, but either way I’m very happy.  I’ve yet to take the Eriksen out on the dirt with the new tyres, but I think I’ll be pleasantly surprised when I do.

Update:  I swapped the 26×2.1″ Ignitor Exception tyres for a pair of 26×2.35″ Ignitor ‘Maxxpro’ tyres.  I don’t know what ‘Maxxpro’ means, but I’m guessing something along the lines of ‘heavy’.  Anyway, the Ignitor 2.1s, which were actually ~1.8″ wide, were just too small, and these Ignitor 2.35s measure in with a nice 1.97″.  Aside from the increased size and weight, these new ‘Maxxpro’ Ignitors seem to have much thicker sidewalls, and as a result sealed up much more quickly and required about half the Stan’s sealant that the smaller Exceptions took.  Here’s a comparison of the key specifications:

TyreSizeMeasured WidthMeasured Weight
Ignitor 2.1 Exception26 x 2.1"1.785"490g
Ignitor 2.35 Maxxpro26 x 2.35"1.970"740g
Ignitor 2.129 x 2.1"2.039"600g

Ignitor 2.1 Exception (left) & Ignitor 2.35 Maxxpro (right)

Ignitor 2.35 Maxxpro (left) & Ignitor 2.1 Exception (right)



29er Build: Completion

Tuesday, November 16th, 2010

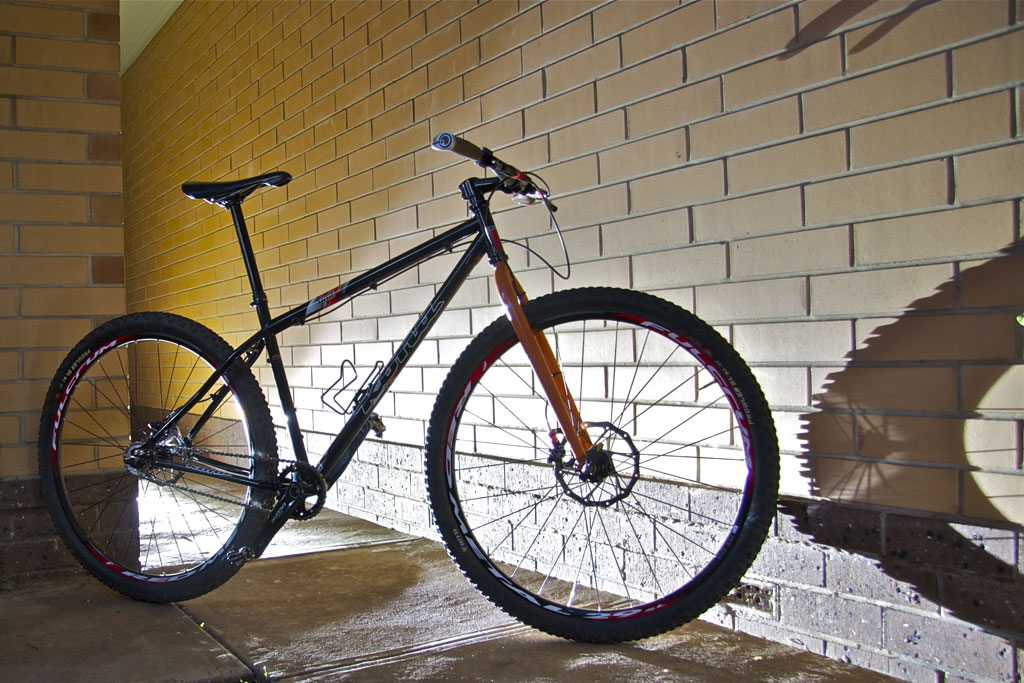

The 29er is finished.  The Kona is still covered in all of the standard stickers, but that probably won’t last too long.  The stem is likely a placeholder until I figure out just what size I want, and when I have figured that out I’ll chop the tandem-length hydro lines and everything should be set.  All told, the build went well and the only real hangup was the seat post.

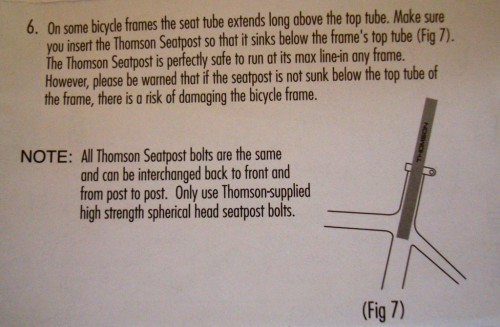

My 330mm Thomson post was too short for the rather odd 29er geometry.  At the proper height, the 330mm post was inserted well beyond the minimum insertion mark, but due to the steeply sloped top tube and long seat tube extension of the frame the bottom of the post did not extend far enough into the seat tube.  According to Thomson (and general opinion) the post should extend below the bottom of the top tube to minimize the risk of cracking the frame.  The 330mm post only extended about halfway between the top and bottom of the top tube.  The 410mm Thomson extends well below the bottom of the top tube, so problem solved.

Here are the full specs:

Specifications
Size18"
ColorBlack
Weight10.8kg (23.8 lbs)
FrameKona Unit, Steel
ForkSurly Karate Monkey (w/ ground-off canti bosses)
HeadsetRitchey
StemThomson, 90mm
HandlebarsEaston EA50 low-rise, 640mm
GripsErgon GP1 BioKork
BrakesAvid Elixir CR Carbon, Roundagon Rotors (185/160)
CassetteSinglespeed spacers, Surly 20t cog HBC steel/alloy 20t cog
ChainSRAM PC1
Crankset/BBShimano Deore 175mm (FC-M590), HBC 32t SS alloy ring (1/8")
PedalsShimano M540
WheelsFulcrum Redmetal 29 SL
SkewersShimano XT
TiresWTB Prowler 29 SL, 2.1"
Maxxis Ignitor, 29x2.1"
SaddleSelle Italia Flite Titanium
SeatpostThomson 27.2, 410mm
Lynskey Ti post, 27.2 / 400mm

29er Build: Getting Closer

Thursday, November 4th, 2010

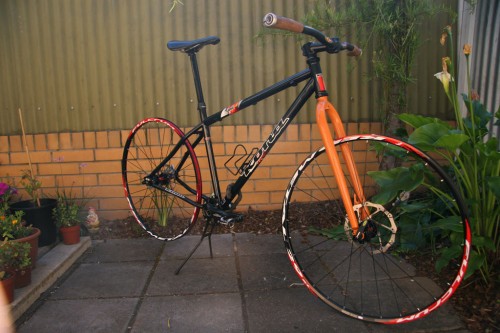

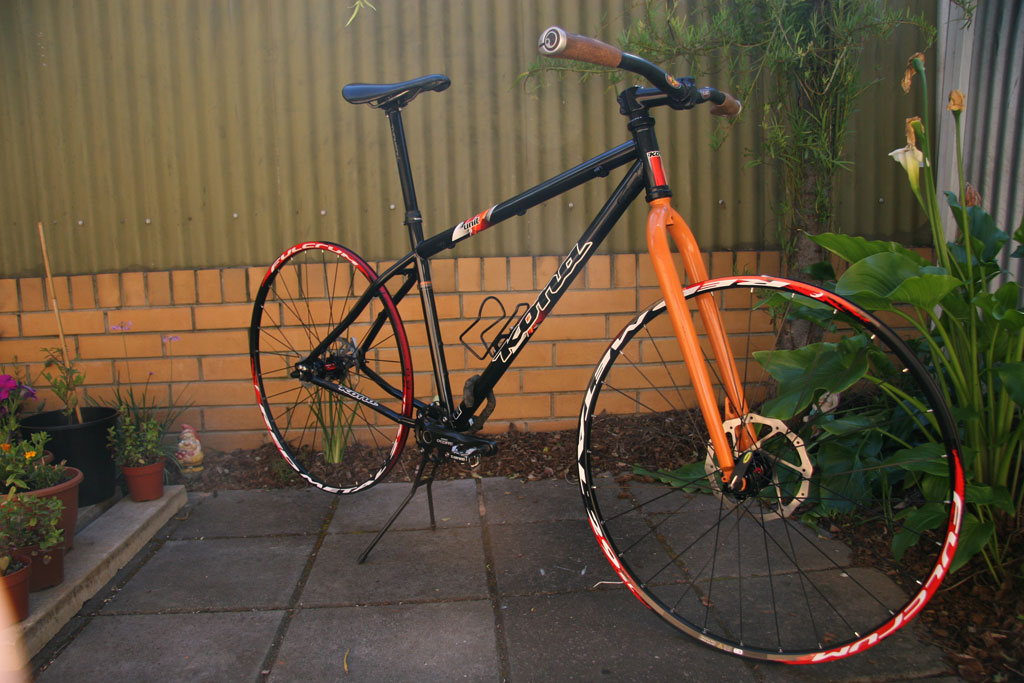

The headset and Fulcrum Redmetal 29 SL wheels (with their subtle stickers) are installed.  Is it starting to look like a bike?

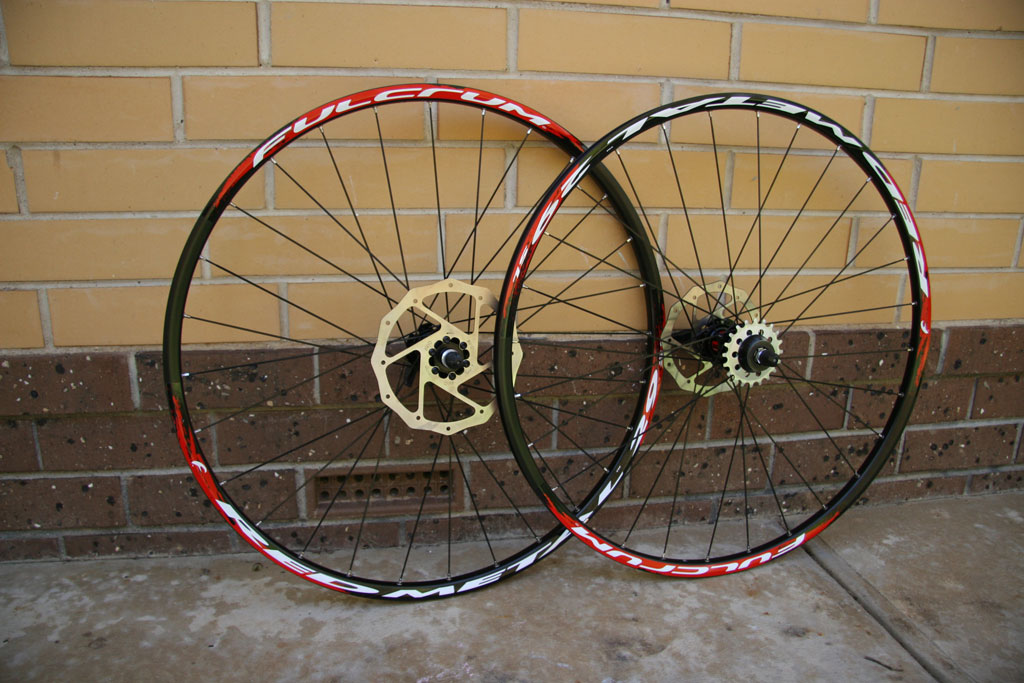

The wheels are between the stickers and the brick wall.  These seem nice, but I’ll wait to pass judgement until I’ve ridden them for a while.
